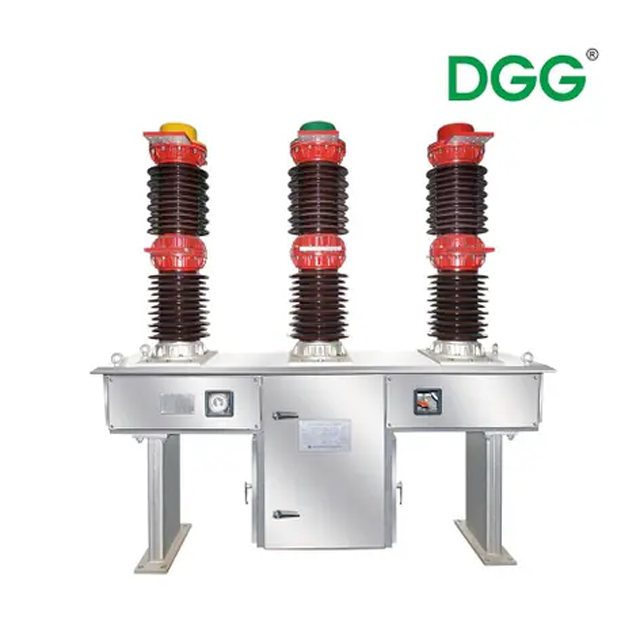

Circuit breakers are essential safety devices designed to prevent overcurrent situations in electrical circuits. They are used to protect wiring and equipment from damage caused by overloads and short circuits. The labels and markings on circuit breakers are critical to understanding their capacity and how they operate. Whether you're a homeowner, technician, or someone looking to learn more about electrical systems, understanding how to read a circuit breaker is key to ensuring safety and proper operation.
Circuit breakers are designed with specific features and limitations to protect electrical systems. The key information displayed on a circuit breaker label typically includes:
The amperage rating is one of the most important pieces of information on a circuit breaker. It refers to the maximum amount of current the breaker can handle before it trips to protect the circuit. The label will usually indicate the amperage in amps (A), and it is essential to match the breaker to the size of the circuit to avoid damage or risk of fire.
Example: A typical household circuit breaker might be labeled as 15A, which means it is rated to handle 15 amperes of electrical current before tripping.
Circuit breakers are also rated for a specific voltage, which represents the maximum voltage that the breaker can safely handle without being damaged. Voltage is crucial because if the voltage exceeds the rated value, the breaker may fail to trip in the event of an overload or fault.
Example: A breaker rated 120/240V means it is designed to handle circuits operating at 120 volts or 240 volts, typically in residential systems.
Some circuit breakers are designed for specific applications, and the labeling may include the type of breaker. There are several types of circuit breakers, including:
Standard (Thermal-Magnetic): Common in homes, these breakers offer overload and short circuit protection.
Ground Fault Circuit Interrupter (GFCI): Protects against ground faults and is essential for wet areas like bathrooms or kitchens.
Arc Fault Circuit Interrupter (AFCI): Protects against arc faults, which can cause fires due to faulty wiring.
Understanding the type of breaker installed in your system helps in determining the proper protection for various electrical issues.
This is the maximum fault current the breaker can safely interrupt without causing damage. It is measured in kA (kiloamperes) and indicates the breaker’s capacity to handle a short circuit without failing.
Example: A circuit breaker with an interrupting rating of 10kA can safely interrupt faults up to 10,000 amperes.
Most circuit breakers will also include the manufacturer’s name, model number, and country of origin. This information can be useful for identifying the specific breaker and finding more details such as its user manual or warranty.
Circuit breakers are equipped with a mechanism designed to trip (disconnect the power) when the circuit experiences an overload or short circuit. The trip settings, which indicate when the breaker will trip, are essential for protecting both the circuit and the appliances connected to it. The following factors influence trip settings:
Most circuit breakers have a time-delay feature, which allows them to handle brief overloads without tripping immediately. For example, a refrigerator may draw a temporary surge of power when the compressor starts, but the breaker should not trip unless this surge persists beyond a certain time frame.
Circuit breakers typically feature thermal and magnetic trip mechanisms:
Thermal trip occurs when the breaker detects excessive heat due to prolonged overcurrent conditions. This type of trip is common in residential circuit breakers.
Magnetic trip is used for detecting short circuits and is triggered almost instantaneously, preventing immediate damage from excessive current.
Both mechanisms work together to provide comprehensive protection against different electrical issues.
Correctly interpreting the information on a circuit breaker’s label is critical for ensuring electrical safety. Here’s how reading the breaker can improve your electrical system’s safety:
Using the correct amperage rating ensures that the breaker is not undersized or oversized for the circuit. An undersized breaker could trip too often, disrupting the circuit’s operation, while an oversized breaker may fail to trip during an overload, putting the circuit and connected appliances at risk.
Example: If a circuit powers a refrigerator, which requires 5 amps, a 15-amp circuit breaker is typically the correct size because it will handle the normal current draw and allow for any temporary surges without tripping unnecessarily.
By understanding the voltage rating and interrupting rating, you can avoid placing your circuit breaker in a situation where it might not function correctly. For instance, using a 240-volt breaker in a 120-volt circuit could cause the breaker to malfunction, risking electrical hazards.
By reading the breaker’s label and checking its condition during regular inspections, you can detect when it’s time to replace an aging or faulty breaker. Old or worn-out breakers can fail to operate correctly, leaving your electrical system unprotected.
While interpreting circuit breakers seems straightforward, it’s important to avoid common mistakes:
Each appliance and electrical system has specific requirements. Ignoring these guidelines can lead to improper breaker sizing and a higher risk of electrical failure. Always refer to the appliance’s manual or electrical system documentation for the correct breaker size.
Installing a larger circuit breaker than required might seem like a way to prevent tripping, but it can be dangerous. A larger breaker may not trip when it should, potentially allowing overheating or other electrical hazards to occur.
Using the wrong type of breaker, such as a standard breaker instead of a GFCI in a bathroom, can put you at risk for electrical shock. Be sure to use the correct breaker for the specific needs of each area in your home or facility.
Reading a circuit breaker’s label is crucial for ensuring both safety and proper operation of your electrical system. Understanding the breaker’s amperage, voltage rating, interrupting capacity, and other key features allows you to make informed decisions when it comes to electrical protection.
Safety First: Choosing the right circuit breaker and correctly interpreting its information ensures that your electrical system is well-protected and avoids potential hazards.
Regular Inspections: Keeping an eye on the condition of your breakers and confirming that they meet the required specifications is vital for safe operations.
If you’re ever unsure about your breaker’s specifications or need help upgrading or replacing it, don’t hesitate to consult with a licensed electrician to ensure that your electrical system remains in optimal condition. Ensuring that your breakers are correctly sized and functioning properly will keep your electrical appliances, devices, and infrastructure safe for years to come.
