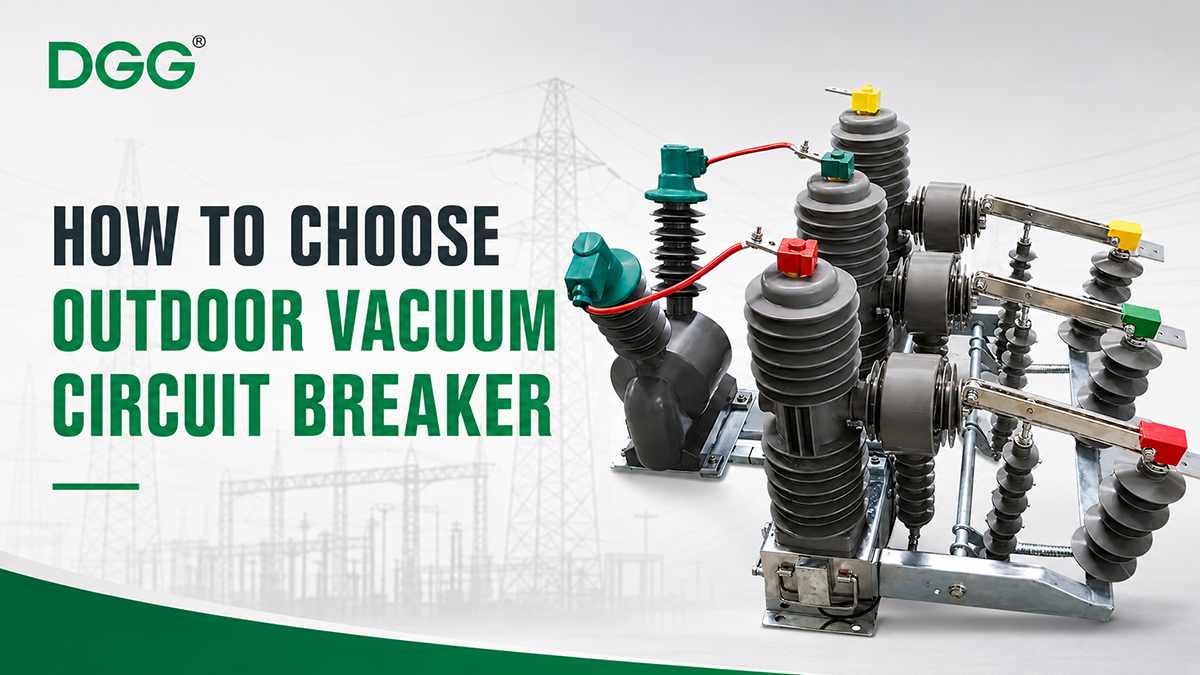

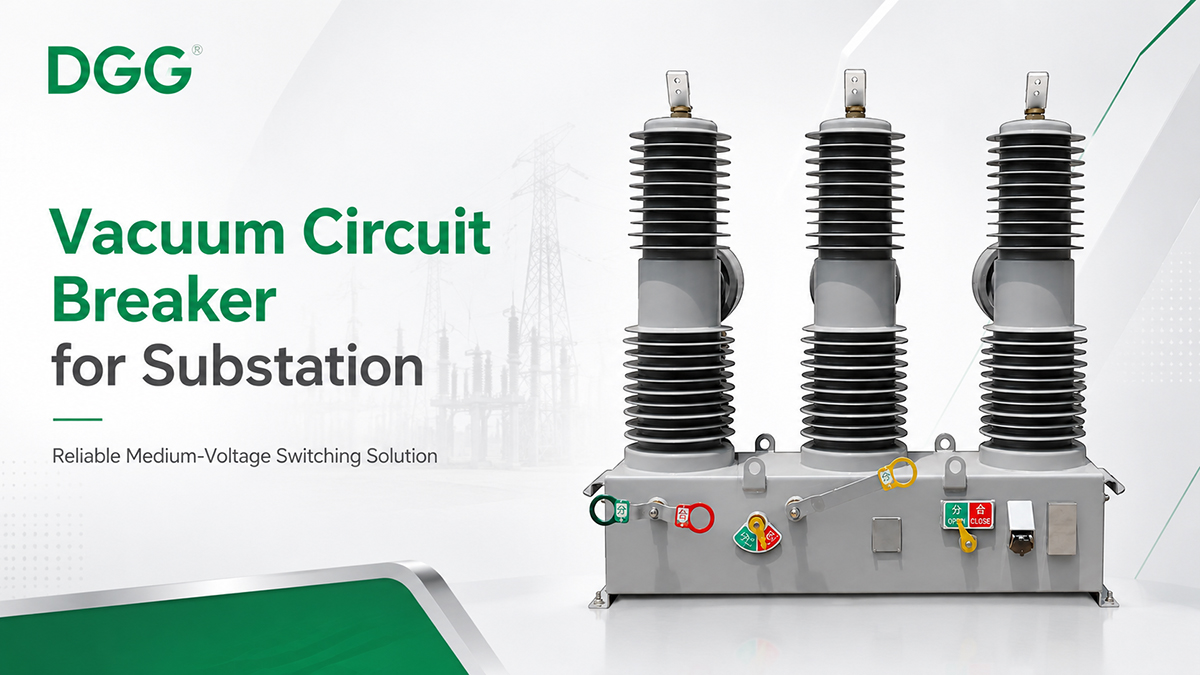

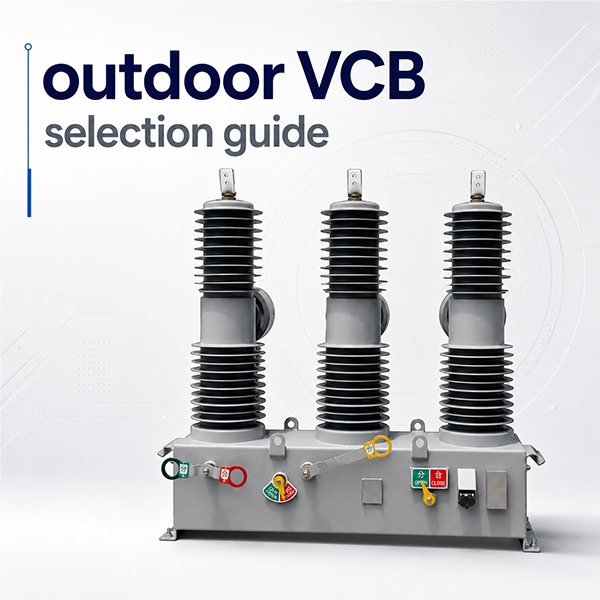

How To Choose An Outdoor Vacuum Circuit Breaker for Substation And Overhead Line Applications

Article Overview

Selecting the right outdoor vacuum circuit breaker is not only about choosing a voltage level. For substations, overhead distribution lines, industrial power systems, renewable energy projects, and infrastructure applications, the circuit breaker must match the electrical parameters, protection requirements, installation environment, control method, and long-term operation needs of the project.

An outdoor vacuum circuit breaker plays an important role in switching, feeder protection, fault interruption, and distribution network reliability. If the selection is not accurate, the equipment may face problems such as insufficient breaking capacity, unsuitable insulation level, poor environmental adaptability, or incompatibility with the protection and control system.

This article explains the key factors customers should consider when selecting an outdoor vacuum circuit breaker for substation and overhead line applications, helping utilities, EPC contractors, industrial users, and project engineers make more practical procurement decisions.

Project Summary

• Product category: Outdoor vacuum circuit breaker / intelligent outdoor VCB / outdoor high voltage AC vacuum circuit breaker

• Main applications: Substation feeder protection, overhead distribution lines, industrial power supply, renewable energy grid connection, railway and infrastructure projects

• Selection focus: Rated voltage, rated current, short-circuit breaking current, insulation level, installation method, control mode, CT/PT configuration, protection functions, and environmental conditions

• Customer value: Safer switching operation, reliable fault interruption, better feeder protection, and improved distribution network reliability

• DGG Power support: Product selection, project-based configuration, technical documentation, testing support, and coordination with related medium- and high-voltage equipment

Why Correct Outdoor Vacuum Circuit Breaker Selection Matters

An outdoor vacuum circuit breaker is a key switching and protection device in medium- and high-voltage power distribution systems. It is responsible for opening and closing circuits under normal operating conditions and interrupting fault current when required by the protection system.

For substation and overhead line projects, incorrect selection may lead to operation risks. A breaker with insufficient short-circuit breaking capacity may not meet fault interruption requirements. A breaker with unsuitable insulation level may not perform reliably under site conditions. A breaker without proper control or communication configuration may not meet distribution automation requirements.

Correct selection helps ensure that the equipment is suitable for:

• System voltage

• Load current

• Fault current level

• Outdoor environment

• Protection coordination

• Operation and maintenance requirements

• Remote control or automation needs

• Long-term power supply reliability

1. Confirm the Rated Voltage and System Voltage

The first step in selecting an outdoor vacuum circuit breaker is confirming the system voltage and rated voltage. The rated voltage of the breaker should match the voltage class of the power system.

For example, outdoor vacuum circuit breakers are commonly used in distribution systems such as 11kV, 12kV, 24kV, 35kV, or 40.5kV applications, depending on project requirements and regional standards.

Customers should provide:

• Nominal system voltage

• Highest system voltage

• Power frequency

• Applicable project standard

• Substation or overhead line application details

The voltage level affects insulation design, phase spacing, withstand voltage requirements, and the overall equipment structure.

2. Check the Rated Current

Rated current refers to the current that the circuit breaker can carry continuously under specified operating conditions. It should be selected according to the load current of the circuit and future capacity requirements.

For substation feeder circuits and overhead distribution lines, the rated current should not only meet current load requirements but also allow reasonable margin for future expansion.

Customers should consider:

• Current load level

• Transformer capacity

• Feeder capacity

• Expected load growth

• Continuous operation requirements

• Ambient temperature conditions

Selecting the right rated current helps prevent overheating, contact wear, and long-term operation risks.

3. Confirm the Short-Circuit Breaking Current

Short-circuit breaking current is one of the most important parameters for an outdoor vacuum circuit breaker. It determines whether the breaker can safely interrupt fault current under short-circuit conditions.

If the short-circuit breaking current is lower than the system fault current level, the breaker may not provide sufficient protection. Therefore, customers should confirm the short-circuit current calculation or project design value before selecting the product.

Key information includes:

• Rated short-circuit breaking current

• Rated short-circuit making current

• Rated peak withstand current

• Rated short-time withstand current

• Short-circuit duration requirement

• Protection coordination design

For feeder protection and substation applications, this parameter is directly related to system safety.

4. Evaluate Insulation Level and Withstand Voltage

Outdoor vacuum circuit breakers must maintain reliable insulation performance under outdoor operating conditions. The insulation level should match the system voltage, installation environment, altitude, and applicable standards.

Important insulation-related parameters include:

• Power frequency withstand voltage

• Lightning impulse withstand voltage

• Insulation distance

• Phase-to-phase clearance

• Phase-to-ground clearance

• Creepage distance

• Pollution level

• Altitude correction requirements

For outdoor installations, insulation performance is affected by rain, humidity, dust, pollution, temperature variation, and altitude. In high-altitude or polluted environments, insulation selection should be carefully reviewed.

5. Choose the Right Installation Method

Outdoor vacuum circuit breakers can be installed in different ways depending on the project design. The installation method affects structural design, operating mechanism layout, cable or conductor connection, maintenance access, and site construction.

Common installation scenarios include:

• Pole-mounted installation

• Substation feeder bay installation

• Outdoor platform installation

• Overhead line sectionalizing point

• Transformer-side protection installation

• Renewable energy grid connection point

• Industrial outdoor power distribution system

Customers should provide installation drawings, foundation requirements, conductor connection method, and site layout information when possible.

6. Decide Manual, Motorized or Intelligent Operation

Different projects require different operation methods. A basic outdoor vacuum circuit breaker may use manual operation, while intelligent models may support motorized operation, remote control, automatic reclosing, and communication functions.

Customers should confirm:

• Manual operation requirement

• Motor operation requirement

• Control voltage

• Local control method

• Remote control requirement

• Automatic reclosing requirement

• Communication interface

• Controller configuration

• Status feedback requirement

For distribution automation projects, intelligent operation and communication functions are especially important. For basic feeder protection projects, a simpler configuration may be sufficient.

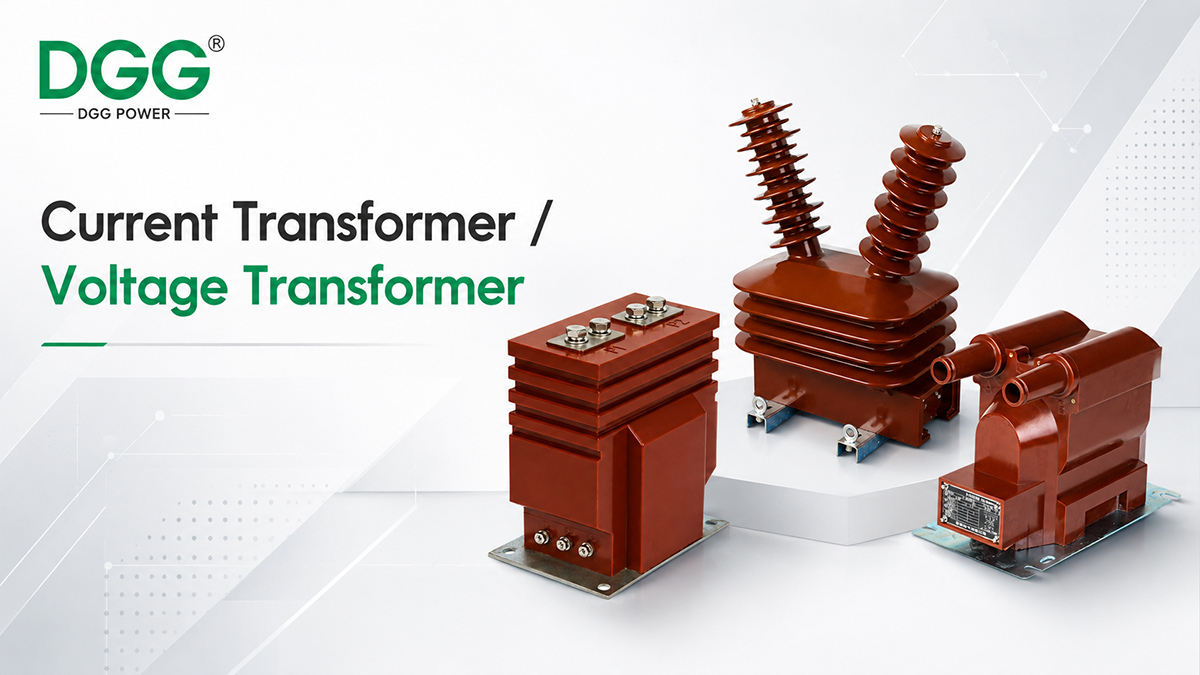

7. Confirm CT and PT Configuration

Some intelligent outdoor vacuum circuit breakers need current transformers and voltage transformers to support protection, measurement, monitoring, and automation functions.

CT and PT configuration may affect:

• Protection accuracy

• Current measurement

• Voltage measurement

• Fault detection

• Zero-sequence current detection

• Controller input signals

• Remote monitoring

• Distribution automation integration

Customers should confirm whether the project requires built-in CTs, external CTs, external PTs, zero-sequence CTs, or voltage sensing devices.

8. Consider Protection and Automation Functions

For modern distribution networks, outdoor vacuum circuit breakers are often expected to do more than switching and fault interruption. Intelligent models can be configured to support protection and automation functions according to project requirements.

Possible functions include:

• Overcurrent protection

• Short-circuit protection

• Ground fault protection

• Zero-sequence protection

• Automatic reclosing

• Fault detection

• Fault isolation

• Status monitoring

• Remote control

• Communication with distribution automation systems

The required functions should be confirmed according to the system design, protection coordination, and operation strategy.

9. Review Environmental Conditions

Outdoor vacuum circuit breakers must operate reliably under various environmental conditions. The project environment should be reviewed before final selection.

Important environmental factors include:

• Ambient temperature

• Humidity

• Altitude

• Wind load

• Pollution level

• Rain and snow conditions

• Salt fog or coastal environment

• Dust or industrial pollution

• Frequent operation requirements

• Vibration or seismic conditions, if applicable

For high-altitude, cold, humid, coastal, or polluted environments, the product configuration and insulation design should be reviewed carefully.

10. Check Testing, Documentation and Project Support

For power equipment procurement, customers should not only compare product models and prices. Testing capability, technical documentation, and project support are also important.

Before purchasing an outdoor vacuum circuit breaker, customers may need:

• Product technical datasheet

• General arrangement drawing

• Wiring diagram

• Operation manual

• Factory test report

• Routine test support

• Type test information, if applicable

• Packaging and delivery documentation

• Installation guidance

• Commissioning support

• After-sales technical communication

For EPC and utility projects, complete documentation and responsive technical support can help improve project execution efficiency.

Outdoor Vacuum Circuit Breaker Selection Checklist

Before sending an inquiry, customers can prepare the following information:

• System voltage

• Rated current

• Short-circuit breaking current

• Frequency

• Installation method

• Application scenario

• Control voltage

• Manual or motor operation requirement

• Intelligent controller requirement

• CT / PT configuration

• Automatic reclosing requirement

• Communication requirement

• Environmental conditions

• Altitude

• Applicable standard

• Quantity and delivery schedule

• Technical drawings or project specifications

The more complete the project information, the more accurate the product selection and quotation will be.

DGG Power Outdoor Vacuum Circuit Breaker Solutions

DGG Power provides outdoor vacuum circuit breaker solutions for medium- and high-voltage power distribution systems. Our products can be applied in substations, overhead distribution lines, industrial power systems, renewable energy grid connection, railway power supply, and infrastructure projects.

DGG Power can support customers with:

• Product selection according to system voltage and project requirements

• Intelligent controller configuration support

• CT/PT and protection function coordination

• Technical drawings and documentation

• Factory testing and inspection support

• Project-based customization

• Coordination with disconnect switches, surge arresters, insulators, fuse cutouts, CTs, and PTs

• Technical communication for EPC and utility projects

For customers who are not sure which model or configuration to choose, DGG Power can provide selection support based on voltage level, load current, fault current, installation method, and control requirements.

Customer Search Questions This Article Answers

This article is relevant to customers searching for:

• How to choose an outdoor vacuum circuit breaker

• Outdoor vacuum circuit breaker selection guide

• Outdoor VCB for substation feeder protection

• Vacuum circuit breaker for overhead line applications

• Outdoor high voltage AC vacuum circuit breaker supplier

• Intelligent outdoor VCB with CT and PT configuration

• Outdoor circuit breaker for distribution automation

• Pole mounted vacuum circuit breaker selection

• Vacuum circuit breaker for renewable energy grid connection

• Medium and high voltage outdoor circuit breaker supplier

FAQ: Outdoor Vacuum Circuit Breaker Selection

1、What information is needed to select an outdoor vacuum circuit breaker?

Customers should provide system voltage, rated current, short-circuit breaking current, installation method, control voltage, CT/PT requirements, protection functions, environmental conditions, applicable standards, and project specifications.

2、Can an outdoor vacuum circuit breaker be used for overhead lines?

Yes. Outdoor vacuum circuit breakers are commonly used in overhead distribution lines for switching, feeder protection, fault interruption, line sectionalizing, and automatic reclosing when configured with suitable control equipment.

3、What is the difference between rated current and short-circuit breaking current?

Rated current refers to the current that the breaker can carry continuously. Short-circuit breaking current refers to the maximum fault current that the breaker can interrupt safely under specified conditions.

4、Does an intelligent outdoor vacuum circuit breaker need CT and PT?

Not always. CT and PT configuration depends on protection, measurement, monitoring, and automation requirements. Some projects may require CTs, PTs, zero-sequence CTs, or voltage sensing devices.

5、Can DGG Power help with outdoor VCB selection?

Yes. DGG Power can support customers with product selection, configuration recommendations, technical documentation, testing support, and equipment coordination according to project requirements.

Conclusion

Choosing the right outdoor vacuum circuit breaker requires careful consideration of voltage level, rated current, short-circuit breaking current, insulation level, installation method, environmental conditions, control mode, protection functions, and automation requirements.

For substations, overhead lines, renewable energy projects, industrial power systems, and infrastructure applications, correct selection can improve switching reliability, fault protection, operation safety, and long-term distribution network performance.
