Dielectric Withstand Testing of High Voltage Fuses: Decoding Causes of Insulation Failure in Global Grids

Introduction: The Critical Role of the Dielectric Test

In the global power infrastructure, the High Voltage Power Fuse is a critical safety component. Its primary job is to interrupt fault currents; however, its other essential role is providing passive insulation during normal grid operation.

The Dielectric Withstand Test (also known as a high-potential or Hi-Pot test), conducted according to international standards like IEC 60282-2, verifies that the fuse can withstand overvoltages (e.g., from switching or lightning strikes) without failing its insulation. When a fuse "fails" this test in a laboratory or field setting, understanding the true cause—product defect versus test setup error—is vital for the stability of global power networks.

Defining Insulation Failure: Flashover vs. Internal Puncture

The term "insulation failure" is often used broadly in the industry, but for electrical engineers managing global projects, there is a fundamental difference between two phenomena:

• Internal Puncture (True Breakdown): This is a catastrophic failure through the bulk of the insulating material (porcelain or polymer). It is caused by voids, impurities, or cracks inside the insulator, creating a conductive path that cannot be repaired. This is a clear product defect.

• Surface Discharge (Flashover): This is a discharge of electricity that tracks over the surface of the insulator through the surrounding air. While serious, flashover is often not caused by the material itself but by external factors that distort the electric field.

Common Causes of Test Failure

Why does a high voltage fuse fail the dielectric test? Based on DGG Power’s extensive experience in global testing laboratories, we classify causes into three main categories:

1. Manufacturing Defects: Misalignment of conductors or contamination in the insulating resin (Type Test Failures).

2. Environmental Factors: High humidity, dust, or salt contamination on the insulator surface can decrease resistance and lead to flashover. This is a common challenge in diverse global climates.

3. Human Error and Setup Anomalies: Incorrect lead placement or unauthorized modifications to the test sample can create localized electric field stress concentration.

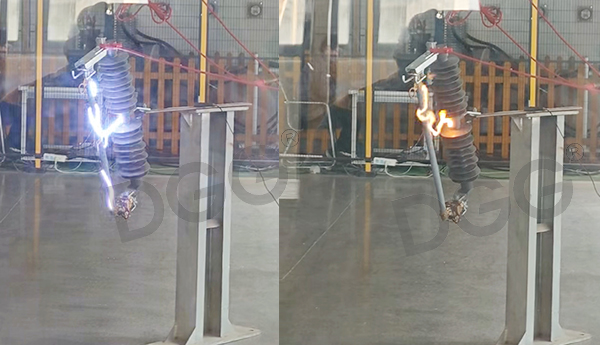

DGG Case Study: A Human Error Anomaly Revealed

DGG Power maintains a transparent, scientific laboratory environment. We recorded a specific, illuminating anomaly during a quality control (QA) routine test that serves as a global benchmark for troubleshooting.

Root Cause: Not a product defect. The failure resulted from an operational error by QC personnel, who mistakenly wrapped a copper wire around the base of the equipment.

Result: The misplaced wire distorted the electric field, leading to insulator discharge and breakdown during the high-voltage test.

Conclusion: DGG Power Ensures Global Operational Continuity
