In medium voltage distribution networks (10kV to 35kV), the Dropout Fuse Cutout is the ultimate protector of transformers and lateral lines. It must do two things flawlessly: blow when a fault occurs and, critically, extinguish the resulting massive electrical arc.
This article analyzes the crucial Interrupting Capacity Test (also known as the short-circuit breaking test), a test that DGG Power relentlessly performs to ensure global grid reliability.
What is Interrupting Capacity?
Interrupting capacity (or breaking capacity) refers to the maximum fault current that a fuse can safely interrupt without catastrophic failure—such as the porcelain insulator shattering or the expulsion tube exploding.

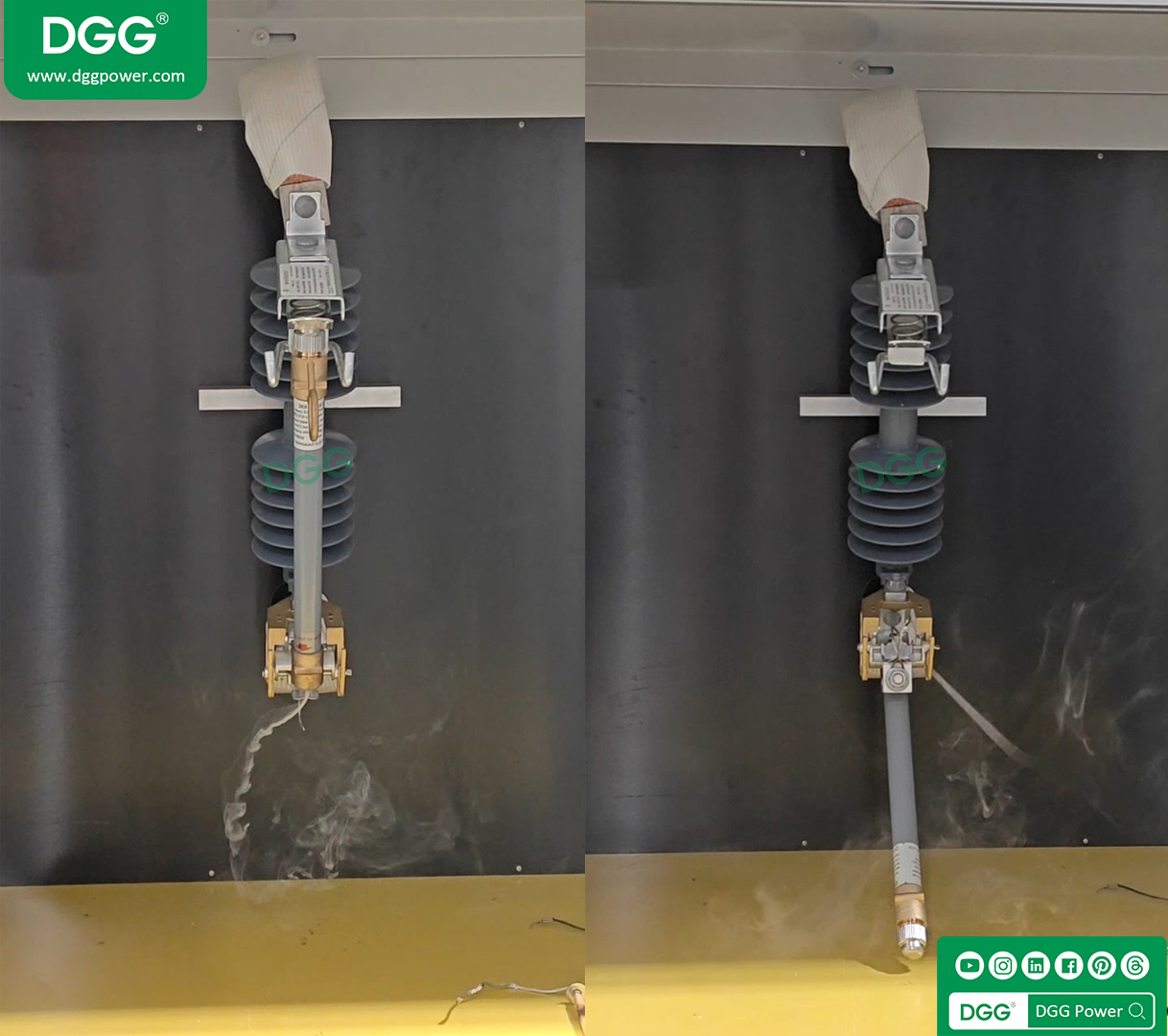

The image above shows a Medium Voltage Fuse successfully clearing a fault, characterized by the jet of smoke and metal vapor expelled downwards, which is the signature action of an expulsion fuse.
Engineering Details of the Test
The test (conducted according to IEC 60282-2 or ANSI C37.41) focuses on three critical vectors:
Short-Circuit Amperage (kA): The fuse is subjected to high symmetrical and asymmetrical currents (e.g., 8kA, 10kA, 12.5kA or higher, depending on the voltage class).
Transient Recovery Voltage (TRV): This is the extreme voltage spike that across the fuse contacts milliseconds after the arc is extinguished. Our designs ensure the gap re-solidifies its insulation faster than the TRV rises.
The "Drop-out" Action: The mechanical linkage must operate simultaneously to the interruption, ensuring a visible air gap for safety.
DGG Power’s Technical Advantage: Optimized Arc Extinction
DGG Power’s fuse cutouts employ a high-purity Arc-Extinguishing Tube liner. Under the extreme temperature of the arc, this liner decomposes and releases a high-pressure de-ionizing gas. This gas, as seen being expelled in the test image, rapidly cools and de-ionizes the arc, forcing it to extinguish at the next current zero. This proven capability is vital for grids, where robust fault protection is required due to expanding industrial loads.
