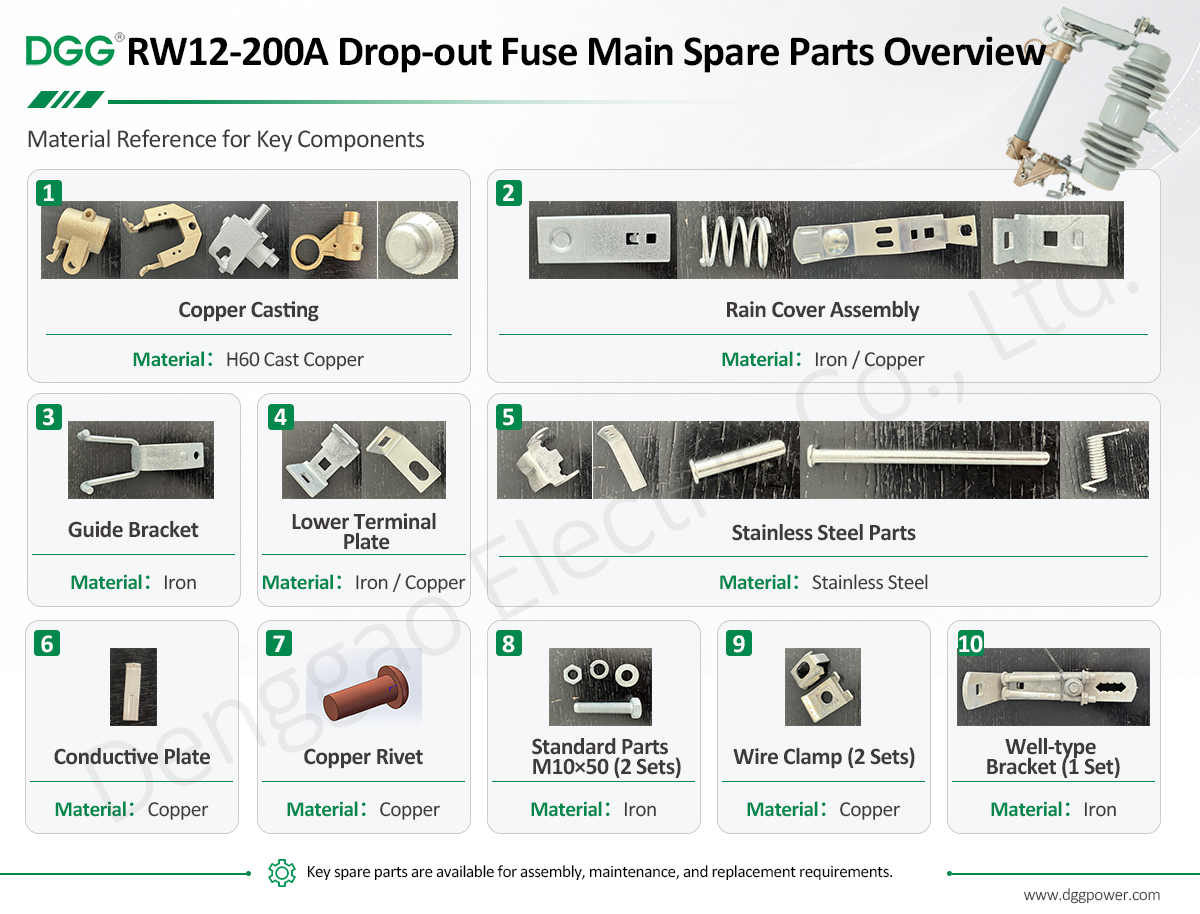

Key components: Insulator, fuse tube, copper casting parts, rainproof cover, guide bracket, lower terminal plate, stainless steel parts, conductive sheet, copper rivets, clamps, and mounting brackets
Customer value: Reliable fault protection, stable conductivity, easier installation, and long-term outdoor operation
What Is a Dropout Fuse Used For?
A dropout fuse is widely used in medium-voltage distribution networks. It is commonly installed on the high-voltage side of distribution transformers or on branch lines of overhead distribution systems.
When an overload or short-circuit fault occurs, the fuse element melts and interrupts the fault current. After operation, the fuse tube drops down, creating a visible open position and helping maintenance personnel identify the faulted section.
This simple and direct protection method makes dropout fuses widely used in distribution systems, rural power networks, transformer stations, and overhead line protection.
A complete dropout fuse is assembled from several functional parts. Each component affects the product’s electrical performance, mechanical reliability, and outdoor service life.

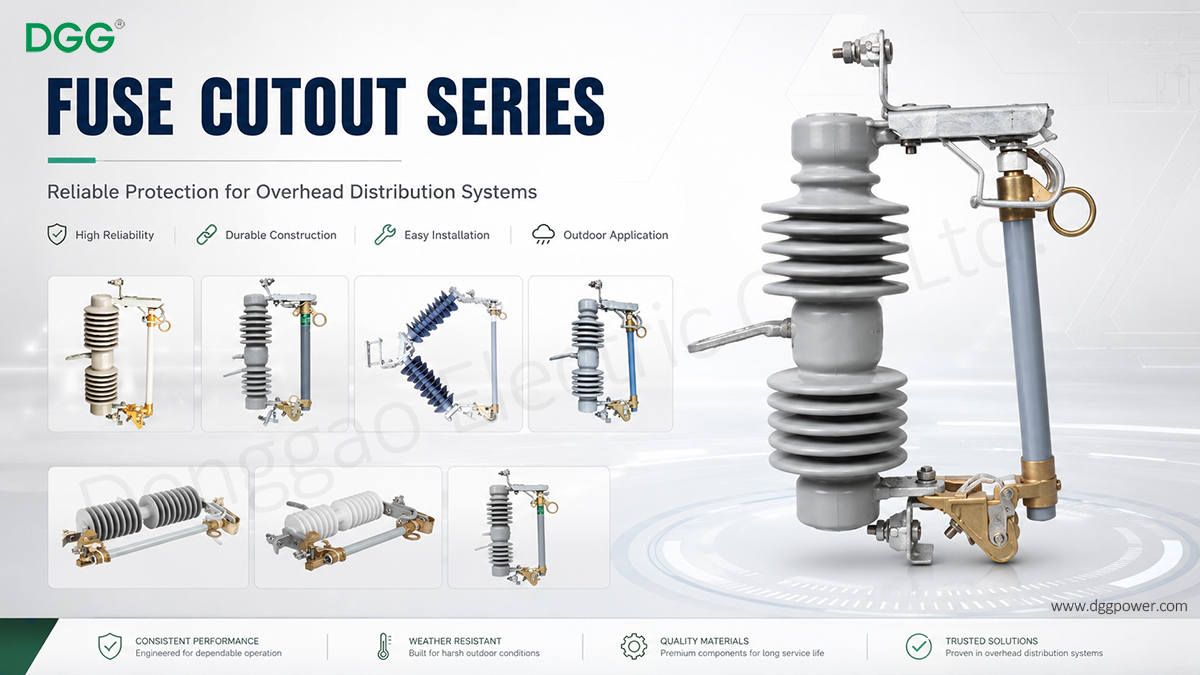

The insulator supports live parts and provides electrical insulation between the conductive components and the mounting structure.
In outdoor applications, the insulator must withstand voltage stress, environmental pollution, humidity, and long-term weather exposure.
A stable insulator structure helps ensure safe operation under normal service conditions.
The fuse tube carries the fuse element and plays an important role during fault interruption.
When a fault current occurs, the fuse element melts, and the fuse tube helps support the interruption process. After operation, the tube drops down to form a visible indication.
For users, the condition of the fuse tube directly affects fault clearing performance and maintenance convenience.
Copper casting parts are used in key conductive and connection areas.
Their role is to provide stable current carrying performance and reliable mechanical connection.
Good conductive components help reduce contact resistance and support stable operation under rated current conditions.
For outdoor distribution equipment, rainproof design is important.
The rainproof cover helps protect key contact areas from direct rain exposure and reduces the impact of weather on long-term operation.
This component is especially important for outdoor fuse cutouts installed in humid, rainy, or exposed environments.
The guide bracket helps ensure correct movement and positioning of the fuse tube during opening and closing operations.
A well-designed guide structure improves operating smoothness and helps maintain consistent mechanical performance.
The lower terminal plate provides connection support for the lower conductive path.
It must maintain stable contact performance and sufficient mechanical strength during long-term operation.
Stainless steel parts are used in areas where mechanical strength and corrosion resistance are important.
They help improve durability in outdoor environments and support long-term structural stability.
Conductive sheets and copper rivets are small but important parts in the current path.
They support electrical continuity and mechanical fastening between components.
For power distribution equipment, these small parts should not be ignored, because poor connection quality may affect long-term reliability.
Clamps, standard bolts, and mounting brackets ensure proper installation and mechanical support.
They help secure the fuse cutout on the structure and maintain stable positioning during operation.
For project installation, complete accessories can reduce on-site assembly difficulty and improve installation efficiency.
Why Component Quality Matters
A dropout fuse works under outdoor conditions for many years. During its service life, it may face rain, dust, pollution, temperature changes, electrical stress, and mechanical operation.
That is why component quality is important. A reliable dropout fuse depends on:
Stable conductive performance
Strong mechanical structure
Reliable insulation support
Weather-resistant outdoor design
Accurate assembly of small parts
Complete accessories for installation
Even small components such as springs, rivets, clamps, and conductive plates can affect the final performance of the product.
DGG Power’s Approach to Dropout Fuse Manufacturing
At DGG Power, dropout fuse production is not only about assembling parts together.
We focus on the full structure, including conductive parts, insulating parts, mechanical linkage, rainproof protection, and installation accessories.
From component preparation to final assembly, each step is designed to support stable operation in medium-voltage distribution systems.
For customers, this means they receive not only a fuse cutout product, but also a complete protection device with traceable parts, practical structure, and field-ready configuration.
Applications in Medium-Voltage Distribution Networks
DGG Power dropout fuses can be used in:
Distribution transformer protection
Overhead distribution line protection
Rural power distribution networks
Utility distribution systems
Industrial power distribution projects
Outdoor switching and protection points
For EPC contractors, utilities, and power distribution operators, choosing the right dropout fuse helps improve protection coordination and reduce fault impact on the wider network.
FAQ: Dropout Fuse Components and Applications
What are the main parts of a dropout fuse?
The main parts of a dropout fuse include the insulator, fuse tube, upper and lower contacts, copper conductive parts, rainproof cover, guide bracket, terminal plate, stainless steel parts, clamps, bolts, and mounting brackets.
What is a dropout fuse used for?
A dropout fuse is used for transformer protection and overhead distribution line protection. It helps interrupt overload or short-circuit fault current and provides a visible open position after operation.
Why are copper parts important in a dropout fuse?
Copper parts are important because they provide the main conductive path. Good copper components help maintain stable current carrying performance and reduce contact resistance.
Why does a dropout fuse need a rainproof cover?
A rainproof cover helps protect key contact areas from direct rain exposure. This improves outdoor reliability, especially in humid or rainy environments.
What voltage range is commonly used for distribution fuse cutouts?
Distribution fuse cutouts are commonly used in medium-voltage networks. DGG Power supplies dropout fuse products for 11kV–38kV distribution applications.
A dropout fuse is made of many small parts, but each part has a direct influence on protection performance, mechanical operation, and long-term outdoor reliability.
By focusing on material selection, conductive performance, insulation support, mechanical structure, and complete accessories, DGG Power provides dropout fuse solutions for medium-voltage distribution networks.
