When Grid Protection Can't Compromise: The Critical Role of Drop Fuses

When Grid Protection Can't Compromise: The Critical Role of Drop Fuses

Imagine a monsoon-soaked substation where a transformer fault sends 12kA surging through lines. In 0.02 seconds, your protection device must:
✅ Melt precisely
✅ Break fault current
✅ Physically isolate the circuit
✅ Survive the arc blast

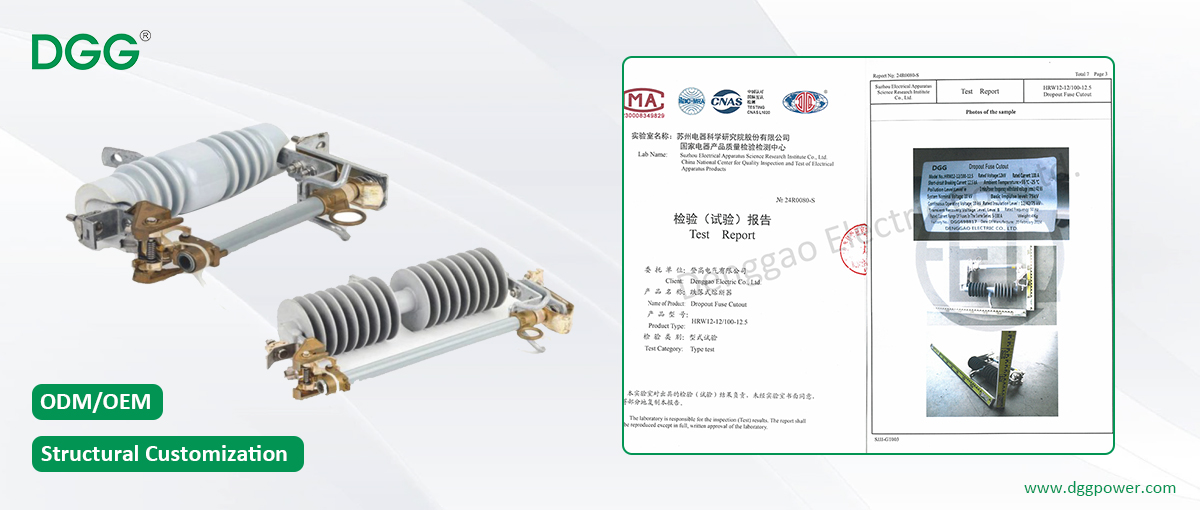

This is the reality RW12-12(F) drop fuses are engineered for.

Engineered for Extreme Conditions: Core Technical Advantages

Why Utilities Choose RW12-12(F): 5 Performance Breakthroughs

1. Dead-Fail Safety Mechanism

Dual-action release: Melting element → Spring release → Gravity drop

Visual disconnection: 45° downward position confirms circuit isolation

Field Proof: Prevents backfeed accidents during maintenance (complies with DL/T 640-1997)

2. Arctic to Desert Reliability

-40°C to +80°C operational range

35mm/kV creepage distance (Exceeds GB/T 15166.3 for polluted areas)

High-altitude certified: 4000m+ installations

3. Load-Break Capability

Silver contacts separate → Arc forms

Gassing liner vaporizes → Pressure buildup

Axial gas blast → Arc extinction in <8ms
(Unlike standard fuses requiring switchgear)

4. Maintenance Optimized Design

Cast brass parallel-groove connectors: Accommodates ±15% conductor size variation

Hinge alignment system: Silver-plated bronze shaft ensures single-motion reclosing

5. Critical Fault Response

Full-range time-current curve: 200A max rating

Instantaneous operation at 230% overload

Compliance & Testing: Beyond Standards

Certified to:

Type Test

DL/T 640-1997 (Outdoor Fuse Technical Conditions)

Rigorous validation:

10,000 mechanical operations

1000 thermal cycles (-40°C ↔ +40°C)

96h salt spray (ASTM B117)

Installation Scenarios That Demand RW12-12(F):

Mining Power Networks (Dust + vibration resistance)

Coastal Substations (Salt corrosion protection)

Renewable Integration Points (Frequent load switching)

Mountainous Transmission (Ice load + altitude performance)
