Project Overview
Disconnect switches are essential isolation devices in high-voltage substations. Their reliable operation depends not only on product quality, but also on accurate installation, mechanical alignment, operating mechanism adjustment, conductor connection, and commissioning before the equipment is put into service.

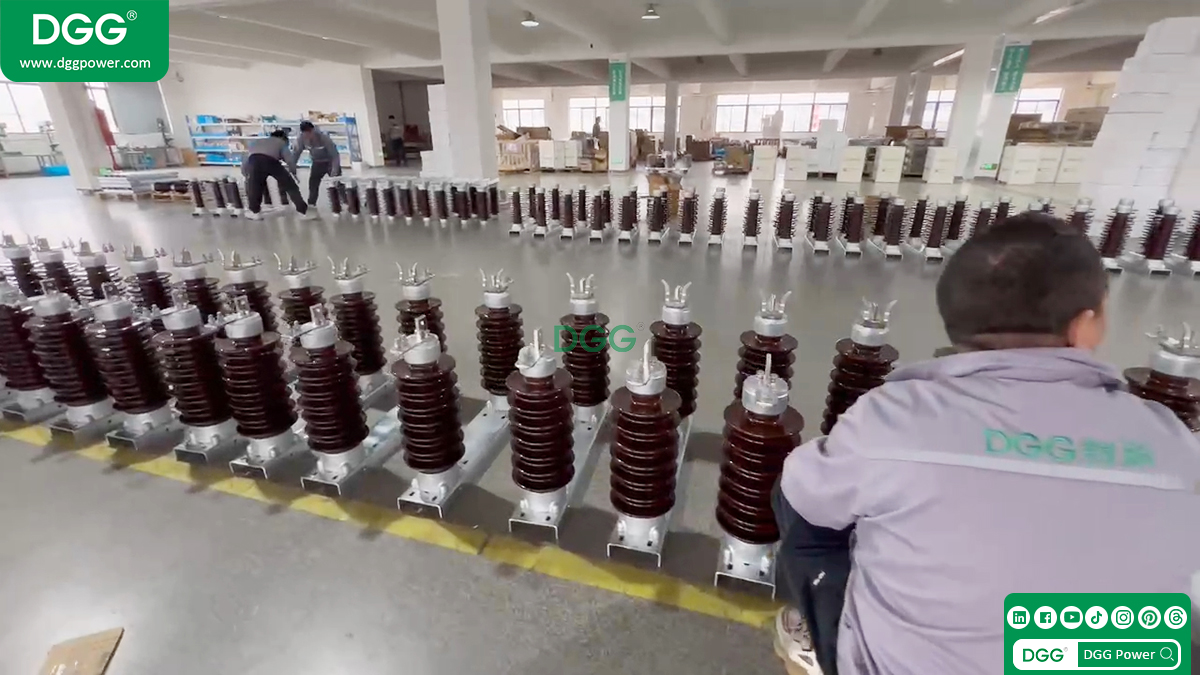

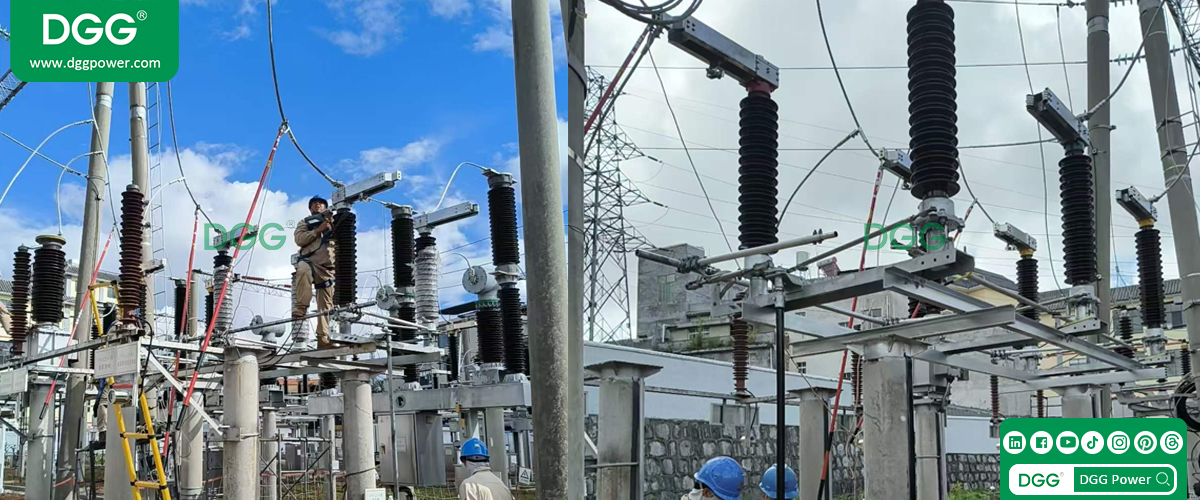

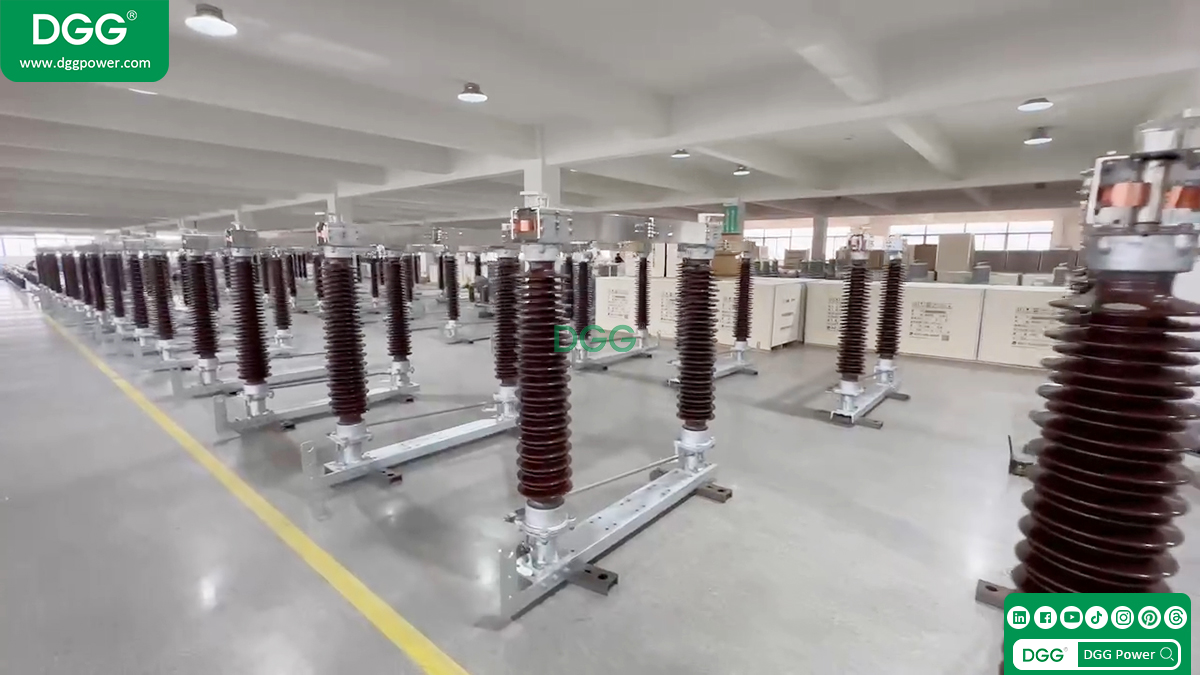

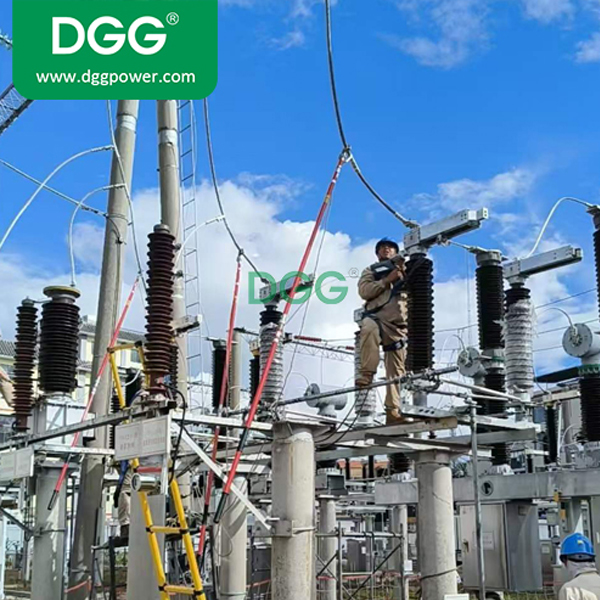

In this 110kV substation project, DGG Power provided on-site support for the installation and commissioning of outdoor high-voltage disconnect switches. The work focused on equipment positioning, linkage adjustment, contact alignment, operating mechanism verification, and overall inspection of the installed switch system.
The project demonstrates DGG Power’s capability to support medium- and high-voltage substation projects with equipment supply, field installation cooperation, commissioning assistance, and practical technical service.
Project Summary
Project type: 110kV substation equipment installation and commissioning
Main equipment: Outdoor high-voltage disconnect switch
Application: High-voltage circuit isolation, switching operation coordination, and maintenance safety
Main work: Equipment positioning, mechanical linkage adjustment, contact alignment, operating mechanism verification, and commissioning preparation
Project value: Reliable isolation operation, clearer maintenance boundaries, improved switching coordination, and safer substation maintenance
DGG Power scope: Equipment supply, on-site technical support, installation cooperation, and commissioning assistance
The Role of Disconnect Switches in a 110kV Substation
An outdoor high-voltage disconnect switch is mainly used to create a visible isolation point after the circuit has been de-energized. It allows maintenance personnel to clearly confirm that the equipment or line section has been electrically isolated before inspection or repair work begins.
Unlike a circuit breaker, a disconnect switch is not designed to interrupt short-circuit current. It normally operates in coordination with circuit breakers and other protection equipment according to the required switching sequence.
In a 110kV substation, disconnect switches support:
Visible electrical isolation
Safe maintenance and inspection
Switching sequence coordination
Busbar and circuit configuration adjustment
Equipment sectionalizing
Flexible substation operation
Because disconnect switches are closely related to operating safety, their mechanical accuracy and commissioning quality are especially important.
Accurate Installation and Equipment Positioning
The installation of a high-voltage disconnect switch requires close coordination between the switch body, support structure, insulators, operating mechanism, transmission rods, terminals, and connected conductors.
During installation, the equipment position and phase arrangement must match the substation design. The supporting structure must remain stable, and the switch components must be correctly aligned before final adjustment.
Key installation considerations include:
Position and orientation of each phase
Stability of the supporting structure
Vertical and horizontal alignment
Phase spacing and electrical clearance
Terminal and conductor connection position
Coordination with adjacent substation equipment
Maintenance and operating access
Accurate positioning provides the foundation for reliable mechanical operation and later commissioning.
Mechanical Linkage and Contact Alignment
The operating reliability of a disconnect switch depends heavily on its mechanical linkage. The operating mechanism must drive all phases smoothly and consistently, while the moving contacts and fixed contacts must reach the correct position during opening and closing.
Commissioning work normally focuses on:
Transmission rod connection
Linkage synchronization between phases
Opening and closing position accuracy
Moving and fixed contact alignment
Mechanical travel and operating stroke
Position indication
Locking and interlocking condition
Smoothness of manual or motorized operation
If the linkage is not properly adjusted, the switch may experience incomplete closing, uneven contact, excessive mechanical resistance, or inaccurate position indication.
A carefully adjusted mechanism helps ensure that each phase operates consistently and that the disconnect switch reaches the required open or closed position.
Operating Mechanism Verification
The operating mechanism connects field operation commands with the mechanical movement of the disconnect switch. Its condition directly affects the accuracy and reliability of switching operations.
Before the equipment is placed into service, technicians need to confirm:
Mechanism installation condition
Connection between the mechanism and switch body
Manual or motorized operating performance
Open and closed position indication
Auxiliary contact feedback, where applicable
Control wiring condition
Grounding of the operating box
Mechanical locking and safety functions
The verification process helps identify possible installation deviations before energization and reduces the risk of abnormal operation after the project is commissioned.
Commissioning Preparation Before Energization
Installation completion does not automatically mean that a disconnect switch is ready for operation. The entire system must be checked as a coordinated assembly before final acceptance and energization.
Typical commissioning preparation may include:
Visual and structural inspection
Confirmation of fasteners and mechanical connections
Repeated opening and closing operation
Phase synchronization verification
Contact position confirmation
Position indication inspection
Operating mechanism function check
Conductor and terminal connection review
Grounding condition verification
Coordination with the substation switching sequence
The exact test and acceptance items should follow the applicable project specifications, technical documents, and site procedures.
Why On-Site Commissioning Matters
High-voltage disconnect switches are large mechanical and electrical assemblies. Transportation, lifting, foundation conditions, support structure tolerances, and conductor connection may all affect the final operating condition.
On-site commissioning helps ensure that:
The installed equipment matches the design layout
Mechanical movement is smooth and consistent
Each phase reaches the required position
The operating mechanism provides correct feedback
Installation deviations are corrected before energization
Maintenance personnel can operate the equipment more safely
For utility and EPC projects, field commissioning is an important bridge between equipment delivery and reliable operation.
DGG Power’s Substation Project Support
DGG Power focuses on medium- and high-voltage transmission and distribution equipment. In addition to manufacturing and supplying disconnect switches, the company can provide project-based support according to equipment configuration and site requirements.
Support for substation projects may include:
High-voltage disconnect switch supply
Equipment selection and technical coordination
Installation drawing and documentation support
On-site installation cooperation
Mechanical linkage adjustment assistance
Commissioning and acceptance support
Spare parts and maintenance support
Coordination with circuit breakers, instrument transformers, surge arresters, and other substation equipment
This integrated approach helps customers reduce communication gaps between manufacturing, installation, and commissioning stages.
Respect for the Frontline Power Workers
Behind every reliable substation are frontline professionals working carefully among high-voltage structures, complex mechanical systems, and demanding site conditions.
Equipment installation and commissioning require patience, technical experience, strict compliance with safety procedures, and close cooperation between team members. Every alignment check, fastening confirmation, and operating test contributes to safer equipment operation and more reliable power supply.
DGG Power extends its respect to all frontline power workers who remain committed to quality, safety, and responsibility at project sites.
FAQ: 110kV Outdoor Disconnect Switch Installation and Commissioning
1、What is the main function of a 110kV disconnect switch?
Its main function is to provide a visible electrical isolation point after the circuit has been de-energized, supporting safe maintenance, inspection, and switching operations.
2、Can a disconnect switch interrupt short-circuit current?
No. A disconnect switch is not designed to interrupt short-circuit current. It normally operates in coordination with a circuit breaker according to the prescribed switching sequence.
3、What should be checked during disconnect switch commissioning?
Typical checks include mechanical linkage, phase synchronization, contact alignment, open and closed positions, operating mechanism function, position indication, locking condition, conductor connections, and grounding.
4、Why is contact alignment important?
Correct contact alignment helps ensure reliable closing, consistent mechanical operation, and appropriate electrical contact. Poor alignment may affect operation and long-term reliability.
5、Can DGG Power support high-voltage substation projects?
Yes. DGG Power can provide medium- and high-voltage equipment, technical documentation, installation cooperation, commissioning assistance, spare parts, and project-based technical support.
Conclusion
Reliable operation of a 110kV disconnect switch begins with accurate installation and careful commissioning. Equipment positioning, mechanical linkage, contact alignment, operating mechanism verification, and pre-energization checks all contribute to safe switching and maintenance operations.
Through this project, DGG Power demonstrated its capability to support high-voltage substation projects from equipment supply to field installation and commissioning assistance.
Looking for outdoor disconnect switches or project support for a high-voltage substation? Contact DGG Power with your voltage level, technical specifications, installation arrangement, operating method, and project requirements.
