Q1. What is a dropout fuse cutout used for?

A dropout fuse cutout is mainly used to protect distribution transformers and overhead distribution lines against short-circuit and overload conditions.

Q2. What happens when the fuse link operates?

When fault current causes the fuse link to melt, the fuse holder is released and drops downward, creating a visible open position.

Q3. Can the fuse link be replaced?

Yes. After the fault has been cleared and the equipment inspected, a compatible fuse link can be installed according to the required protection rating.

Q4. What is the difference between a standard fuse cutout and a loadbreak fuse cutout?

A standard fuse cutout is mainly intended for overcurrent protection and isolation after fuse operation. A loadbreak design includes an additional arc-control structure intended for controlled load interruption within its rated capability.

Q5. Can it be used for distribution transformer protection?

Yes. Installation on the high-voltage side of distribution transformers is one of the typical applications of dropout fuse cutouts.

Q6. What information should be provided for selection?

System voltage, transformer capacity or load current, required fuse-link rating, interruption requirements, installation environment and loadbreak requirements should be confirmed.

You are here: Home » Products » Power Transmission Line Equipment » Fuse Cutout » Outdoor Loadbreak Dropout Fuse Cutout for Transformer And Overhead Line Protection

Product Detail

Outdoor loadbreak dropout fuse cutout for transformer protection

Loadbreak fuse cutout for overhead distribution line protection

Outdoor dropout fuse cutout with arc-control structure

Transformer protection fuse cutout for pole-mounted distribution systems

Expulsion fuse cutout for utility distribution networks

High voltage fuse cutout with replaceable fuse holder

Share to:

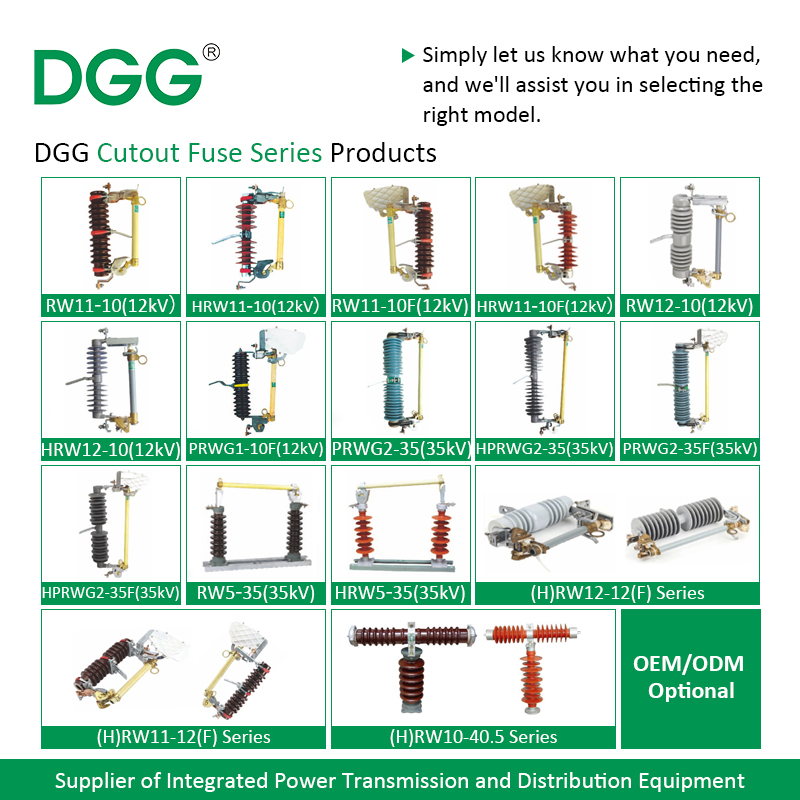

Outdoor Loadbreak Dropout Fuse Cutout for Transformer And Overhead Line Protection

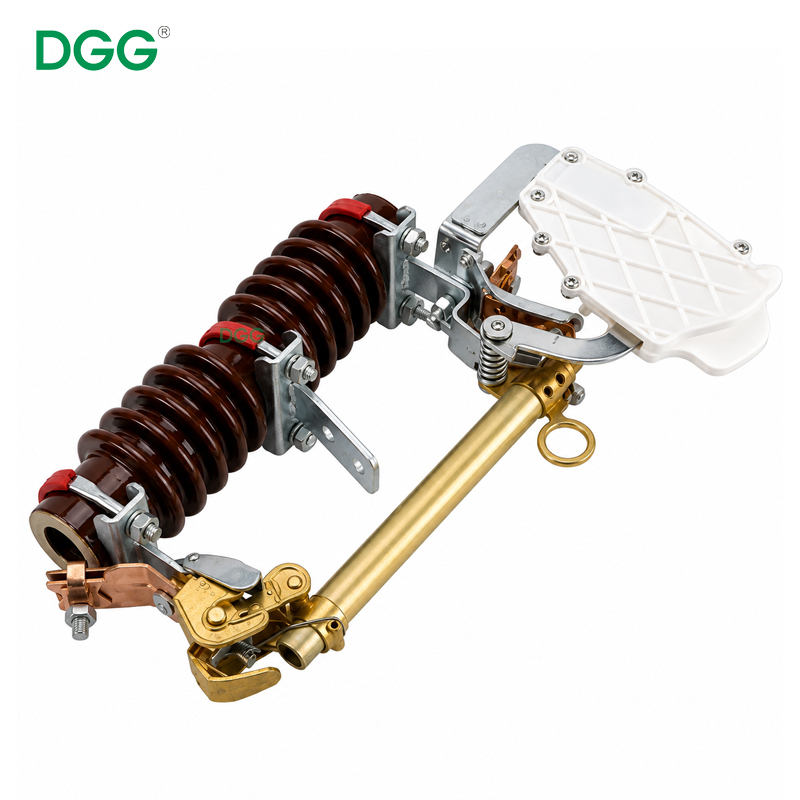

The DGG Outdoor Loadbreak Dropout Fuse Cutout is designed for transformer and overhead distribution line protection. It provides short-circuit and overload protection through a replaceable fuse link and a dropout fuse holder. When a fault causes the fuse link to operate, the fuse tube drops into a visible open position, helping operators quickly identify the disconnected circuit. The loadbreak structure also supports controlled switching operation according to the product configuration.

Availability:

Quantity:



Inquire Add to Basket

Model:

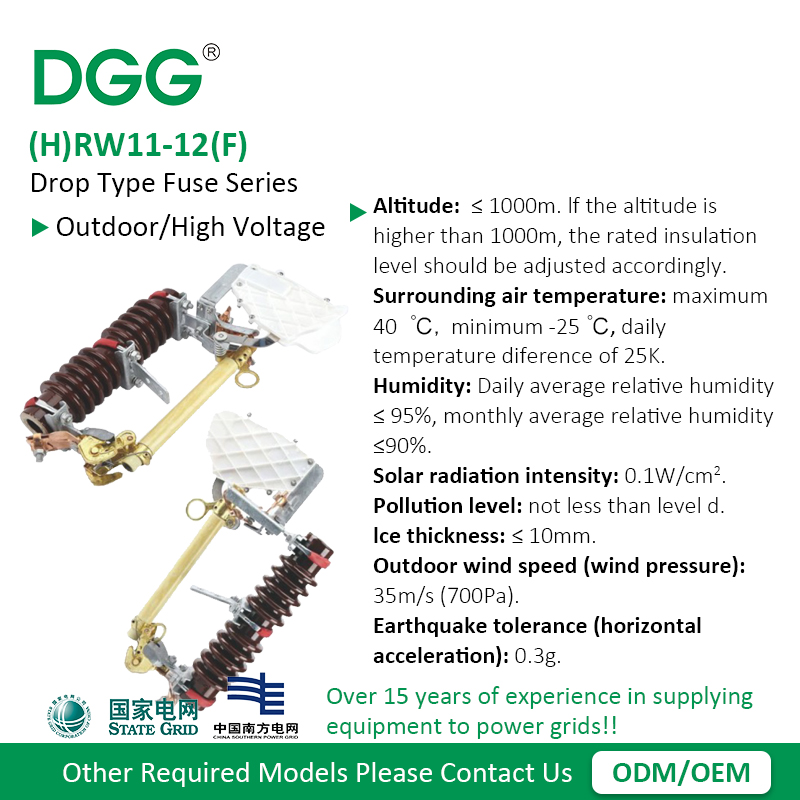

(H)RW11-12(F)
Brand:
DGG

Product Overview

The dropout fuse cutout is a widely used outdoor protection device in medium-voltage distribution networks. It is normally installed on the high-voltage side of distribution transformers or on branch circuits of overhead distribution lines.

During normal operation, the fuse holder remains in the closed position through the tension of the fuse link. When an overload or short-circuit fault occurs, excessive current heats and melts the fuse element.

The arc generated during fuse operation is extinguished inside the fuse tube. After the fuse link operates, the lower contact mechanism releases the fuse holder, allowing it to drop downward and create a clearly visible open point.

This combination of overcurrent protection and visible isolation makes fuse cutouts particularly suitable for pole-mounted transformers, overhead feeders and distribution branch circuits. DGG technical documentation identifies these as typical applications for outdoor dropout fuse cutouts.

Working Principle

Under normal operating conditions, current flows through the upper contact, fuse link and lower contact while the fuse tube remains locked in the closed position.

When the current exceeds the fuse link operating characteristic due to overload or short circuit, the fuse element melts and an arc is generated inside the fuse tube.

The arc-extinguishing structure helps stretch, cool and extinguish the arc. Once the fuse link has operated, the mechanical locking force is released and the fuse holder drops downward, providing a visible indication that the protected circuit has been disconnected.

The fuse link must be replaced before the cutout is returned to service.
