(H)RW12-12(F)
DGG

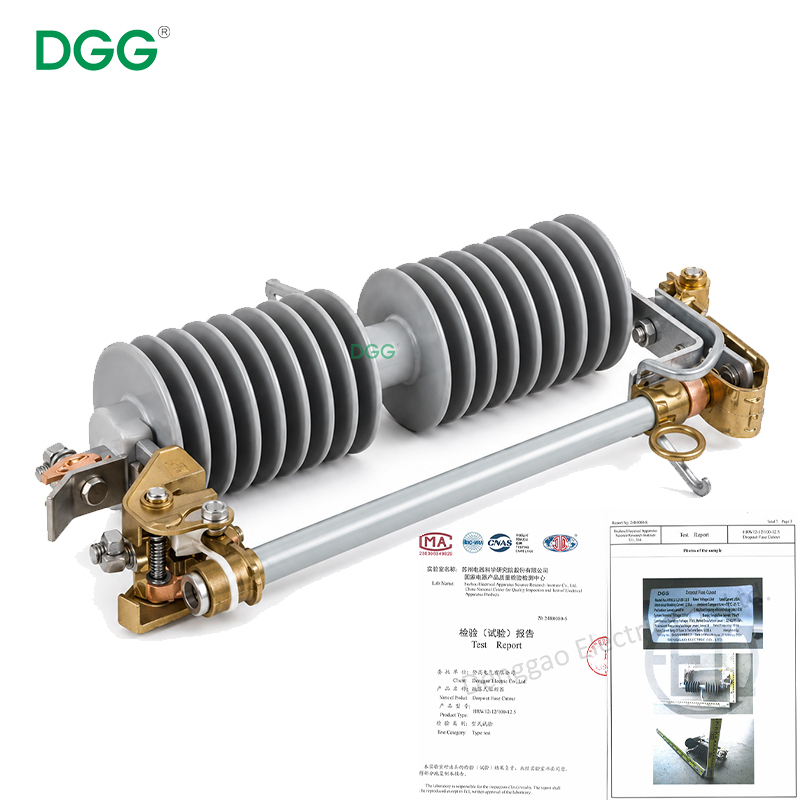

The DGG Outdoor High Voltage Dropout Fuse Cutout is developed for electrical protection in outdoor distribution networks. Its main purpose is to protect compatible circuits and equipment against specified overcurrent conditions.
The product assembly incorporates ribbed insulating components, metal contact fittings, a fuse-holder arrangement and mechanical operating components. These elements work together to provide the required electrical connection, insulation and mechanical operation.
During normal operation, the fuse link carries current through the fuse assembly. When an overload or short circuit causes the fuse link to operate, the current path is interrupted through the fuse's designed arc-extinguishing process. The fuse holder then drops into an open position, providing a visible indication of operation.
The product can be considered for distribution transformer protection, overhead feeder branches and other suitable outdoor distribution applications. The actual application depends on the rated voltage, rated current, interrupting capacity, insulation requirements and protection coordination of the selected model.
DGG supports model-based product selection according to customer specifications and project requirements. Technical parameters and supporting documents should be confirmed before ordering.
