What Tests Should An Outdoor Vacuum Circuit Breaker Pass Before Delivery?

When purchasing an outdoor vacuum circuit breaker, specifications such as rated voltage, rated current and short-circuit breaking current are usually confirmed first. But before the equipment is shipped, another question is equally important:

How do we know that the circuit breaker delivered to the project actually operates as intended?

The answer lies in factory inspection and testing.

An outdoor VCB is not only a vacuum interrupter. It is a complete switching system involving the primary conductive circuit, insulation, operating mechanism, trip and closing circuits, auxiliary contacts and, for intelligent models, sensing, protection, control and communication functions.

A breaker may have the correct nameplate parameters but still require verification that its mechanical operation, electrical insulation, control circuits and project-specific functions have been assembled and configured correctly.

Factory Testing Is Not the Same as Type Testing

Before discussing individual tests, this distinction needs to be clear.

A type test is primarily used to verify that a particular product design or representative configuration meets specified performance requirements. Tests such as short-circuit making and breaking performance, temperature rise, mechanical endurance or lightning impulse withstand may form part of the design qualification according to the applicable standard and test program.

These are not necessarily repeated on every circuit breaker before shipment.

Factory or routine tests have a different purpose. They are used to verify the actual manufactured equipment before delivery and identify problems related to assembly, wiring, adjustment, insulation or operation.

For a project buyer, both are important—but they answer different questions:

Type-test documentation helps answer:
“Has this product design been verified?”

Factory testing helps answer:
“Does the equipment being delivered operate correctly and match the agreed configuration?”

A professional supplier should therefore avoid presenting every factory test as a “type test,” or implying that every design-verification test is repeated on every unit.

The First Test Begins Before the Breaker Is Energized

Testing should not start with high voltage.

Before electrical tests are performed, the breaker should first be checked against the approved technical configuration.

This includes confirming that the product model, rated parameters, operating mechanism, insulation structure, terminals, controller and accessories correspond to the production documents and customer requirements.

The physical condition of the equipment also matters. Insulating components should be checked for visible damage, conductive connections should be properly assembled, fasteners should be in place, and the mechanical structure should not show obvious deformation or installation abnormalities.

For intelligent outdoor VCBs, this stage is particularly important because apparently similar breaker bodies can have very different secondary configurations.

Two breakers may look almost identical while using different:

• control voltages;

• CT ratios;

• controller functions;

• protection settings;

• communication interfaces;

• auxiliary contacts.

Factory verification therefore starts by answering a simple question:

Did we manufacture the breaker that the customer actually ordered?

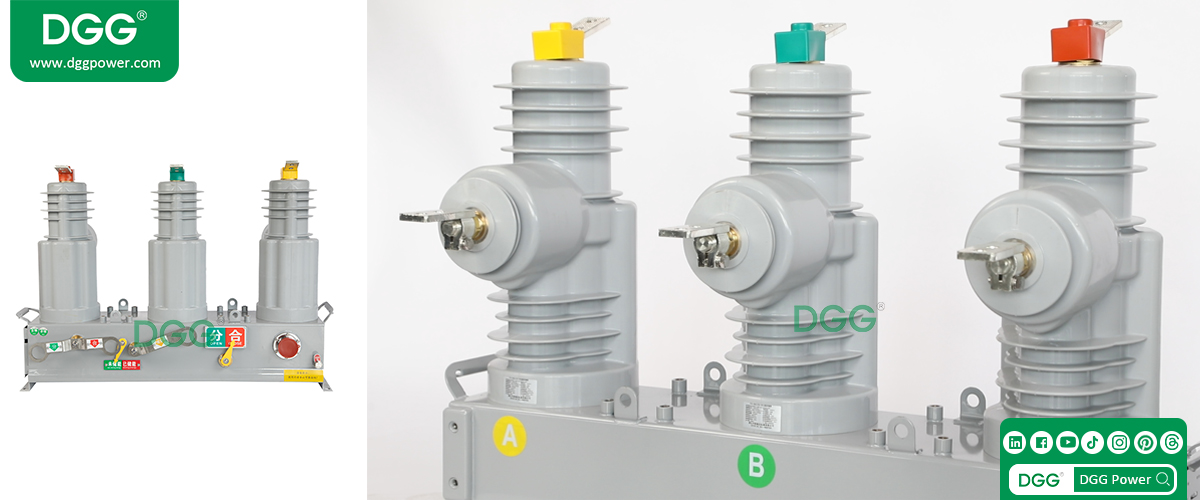

Mechanical Operation: Can the Breaker Open and Close Correctly?

Once the assembly condition is confirmed, mechanical operation becomes one of the most fundamental checks.

A circuit breaker must be able to complete opening and closing operations reliably. The operating mechanism, linkage, springs or other energy-storage components must transfer motion correctly to the moving contacts.

Repeated operation can help identify problems that may not appear during a single manual movement.

Technicians should observe whether the mechanism operates smoothly, whether the breaker reaches the correct open and closed positions and whether the mechanical indication corresponds to the actual operating state.

Depending on the breaker design and test requirements, further mechanical-characteristic measurements may also be performed, such as opening and closing times or other operating parameters specified for that model.

Manufacturer testing procedures provide similar examples. ABB documentation for vacuum circuit breakers includes repeated mechanical opening and closing tests and mechanical-characteristic verification as part of breaker inspection and commissioning activities.

For customers, this is important because a breaker that “moves” is not necessarily a breaker that operates correctly.

Why Opening and Closing Timing Matters

Circuit-breaker operation takes place within a coordinated protection system.

When a protection relay or intelligent controller issues a trip command, the breaker must respond within the expected operating characteristics. Excessive variation in mechanical timing may indicate an adjustment, mechanism or transmission problem that requires further investigation.

For a three-phase breaker, consistency between phases is also important.

The exact parameters and allowable tolerances depend on the breaker design and applicable technical specification, so there is no single universal timing value that should be applied to every outdoor VCB.

This is why factory testing should compare measured values with the requirements of the actual model rather than simply producing a test number without context.

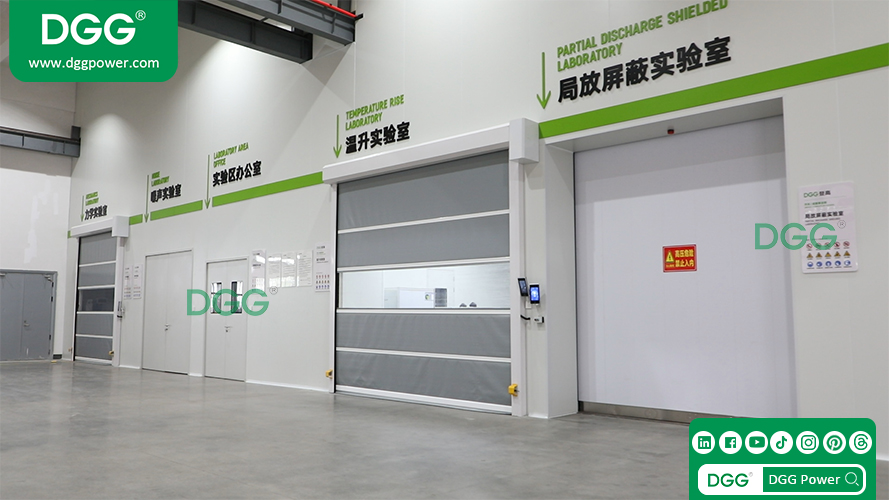

Main-Circuit Resistance: Checking the Conductive Path

When the breaker is closed, current passes through terminals, conductive connections, contacts and the vacuum interrupter.

Every connection contributes a small amount of electrical resistance.

If a contact or conductive joint is poorly assembled, loose or abnormal, the resistance of the main current path may increase. Under service current, excessive resistance can contribute to localized heating.

Measuring main-circuit or contact resistance therefore provides useful information about the condition of the conductive path.

ABB commissioning guidance, for example, recommends contact-resistance verification together with primary-circuit checks for vacuum circuit breakers.

However, the measured value should not be judged against an arbitrary number found online. Acceptance should be based on the breaker design, manufacturer requirements and applicable technical specification.

The purpose of this test is not simply to obtain “a low value.” It is to confirm that the conductive circuit has been assembled and is performing as intended.

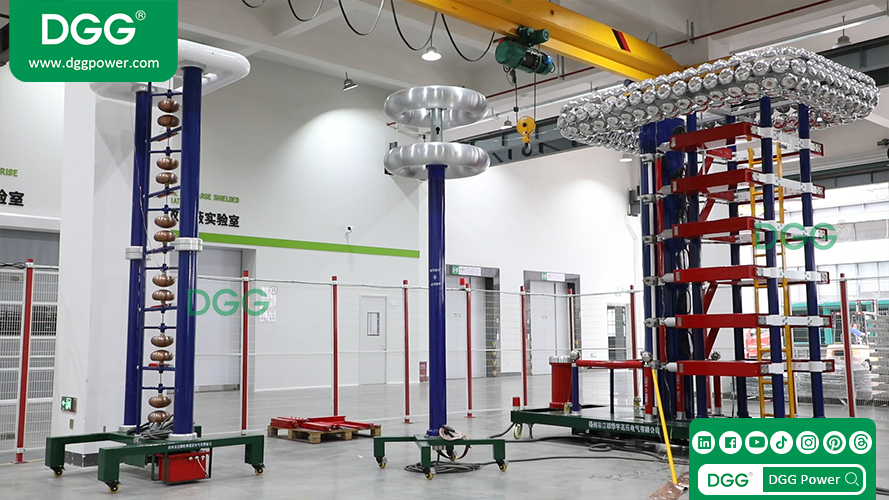

Power-Frequency Withstand Testing: Verifying Insulation Performance

Outdoor vacuum circuit breakers operate with electrical stress between phases, between live parts and ground, and across the open contacts.

Before delivery, dielectric verification is therefore an important part of factory testing.

A power-frequency withstand test applies a specified AC voltage for a specified duration to verify that the insulation system can withstand the required test condition without breakdown or unacceptable flashover.

Depending on the product and applicable test procedure, the verification may involve different insulation paths, such as phase-to-ground or across an open contact gap.

The test voltage must correspond to the rated insulation level of the actual breaker. It should never be copied from another voltage class simply because the products look similar.

This is particularly relevant to DGG Power because insulation performance is treated as a real engineering issue rather than only a nameplate parameter. Previous technical analysis of a 35 kV-class breaker, for example, showed how defects at an insulation interface can develop into abnormal discharge and breakdown. Factory dielectric verification therefore forms part of the broader insulation-quality control process.

Vacuum breaker manufacturer procedures also use AC withstand testing as one method for checking the primary insulation system and, under specified procedures, vacuum-interrupter integrity.

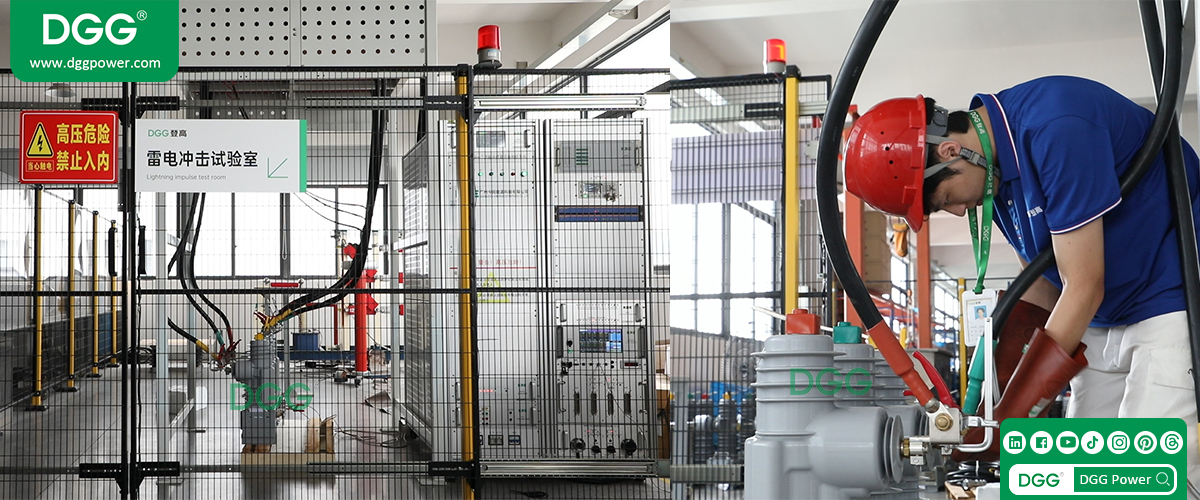

Does Every Breaker Need a Lightning Impulse Test Before Shipment?

This is another area where buyers sometimes misunderstand factory testing.

Lightning impulse withstand is an important insulation-performance requirement for high-voltage equipment, but it should not automatically be assumed that a full lightning impulse type test is repeated on every breaker before every shipment.

Whether an impulse test is a type test, routine test, sample test or additional agreed inspection depends on the applicable standard, product specification and customer requirements.

The same principle applies to other major design-verification tests.

For buyers, the useful question is not:

“Did you repeat every possible laboratory test on this breaker?”

A better question is:

“Which tests are routine factory tests for this unit, which performance tests are supported by type-test documentation, and which additional tests are required by our project specification?”

That distinction results in a much more meaningful technical evaluation.

Secondary Control Circuits Must Be Tested Too

For an electrically operated breaker, correct primary performance is only part of the job.

The opening coil, closing coil, energy-storage motor, auxiliary contacts, control power supply and secondary wiring must also function correctly.

A breaker can pass a mechanical operation check and still fail during actual service if the secondary circuit has been wired incorrectly or a control signal is not transmitted as expected.

Factory testing should therefore verify that control commands can be correctly executed and that the corresponding status information is returned.

For example:

When the breaker receives a closing command, does the mechanism actually close?

After closing, does the auxiliary contact correctly report the closed position?

When a trip command is issued, does the breaker open and does the status feedback change accordingly?

This forms a complete command → action → feedback loop.

For utility and automation projects, this closed-loop verification is far more meaningful than testing individual components in isolation.

Intelligent Outdoor VCBs Require Another Layer of Verification

As outdoor circuit breakers become more integrated with distribution automation, factory testing increasingly involves software and secondary functions as well as mechanical equipment.

An intelligent outdoor VCB may be supplied with current transformers, voltage sensing, protection controllers, automatic reclosing, fault indication or communication interfaces according to project requirements.

These functions should be verified according to the agreed configuration.

If CTs or sensors are included, their signals must correspond correctly with the controller inputs. If protection functions are configured, the controller should correctly process the simulated conditions required by the test procedure. If remote control is required, the operating commands and status feedback should correspond with the communication configuration.

Automatic reclosing also requires more than checking whether the breaker can close twice.

The controller logic, trip sequence, reclosing timing, lockout conditions and status feedback must work together according to the approved protection philosophy.

Not every DGG outdoor VCB includes all of these functions. They are selected according to the project.

That is why intelligent-function testing should always be based on the actual configuration ordered by the customer, rather than a generic list of features.

Nameplate and Traceability Are Part of Quality Control

Testing is not complete when the electrical equipment passes its last operating test.

The product must also arrive at the project with correct identification.

Before shipment, the nameplate should correspond to the confirmed product parameters and order information. Drawings, test records and relevant technical documents should be matched with the supplied equipment.

For project-based power equipment, traceability is particularly valuable.

Months or years after installation, a maintenance engineer may need to identify the breaker model, production information, controller configuration or original technical document. Clear product identification can significantly reduce uncertainty during later maintenance, spare-parts supply or technical communication.

This is why nameplate verification and documentation should be treated as part of delivery quality rather than administrative paperwork added at the end.

What Should a Buyer Check During Factory Inspection?

For customers visiting the factory—or joining a remote witness inspection—the following framework is more useful than simply watching the breaker open and close several times.

This checklist is intended as a purchasing and factory-inspection reference. The final test program and acceptance criteria should follow the agreed technical specification and applicable standards.

What Is a Factory Acceptance Test?

For project-based orders, customers may request a Factory Acceptance Test (FAT) or witness inspection before shipment.

The purpose of an FAT is not necessarily to repeat every type test ever performed on the product design.

Instead, the customer and supplier agree in advance which inspections, operational checks, measurements and documents will be witnessed for the actual project equipment.

A typical FAT may combine physical inspection, mechanical operation, electrical verification, secondary-function checks and document review.

The exact scope should be agreed before the inspection begins.

This is particularly important for international EPC and utility projects, where customer specifications may add requirements beyond a manufacturer's normal production inspection.

A clear FAT procedure helps both sides answer the same question:

What must be demonstrated before the equipment is accepted for shipment?

Can Overseas Customers Witness VCB Testing Remotely?

Yes, where the project arrangement allows it, remote witness inspection can be a practical option for international customers.

Instead of only sending finished-product photos, the factory can conduct a live video inspection in which the customer follows the agreed test process while engineering or sales personnel explain the equipment and test results.

For DGG Power, remote inspection can be coordinated around the actual project scope. It may include equipment identification, visual inspection, operating demonstrations, selected test procedures and document confirmation.

Remote witness testing does not replace every form of third-party inspection or on-site FAT. Whether it is sufficient depends on the contract and customer requirements.

But for projects where international travel is inconvenient, it can provide buyers with much better visibility into the actual equipment before shipment than a standard inspection report alone.

Why Test Records Matter After the Breaker Leaves the Factory

Factory test records are not useful only on the day of shipment.

They can also provide a baseline for future commissioning and maintenance.

For example, if main-circuit resistance is measured again during later maintenance, the original factory result can provide useful historical reference. Mechanical characteristics, controller configuration and original wiring documents can serve a similar purpose.

This creates a continuous technical record:

Manufacturing → Factory Testing → Delivery → Site Commissioning → Operation → Maintenance

For long-life power equipment, that continuity is valuable because technical decisions made years later can be based on documented equipment history rather than memory.

DGG Power’s In-House Testing and Project Support

DGG Power manufactures medium- and high-voltage transmission and distribution equipment and maintains its own factory testing capability.

For outdoor vacuum circuit breakers, inspection and testing can be arranged according to the product model, applicable standard and customer specification. This may involve mechanical operation, insulation verification, primary-circuit checks, secondary control functions and intelligent functions where included in the configuration.

For project orders, DGG Power can also coordinate technical-document review, factory inspection and customer witness testing according to the agreed scope.

This is particularly important for EPC, utility and international tender projects, where a circuit breaker is not evaluated only by its appearance or catalogue parameters.

The objective is to connect three things:

what was specified → what was manufactured → what was verified before shipment.

That connection is one of the foundations of reliable project delivery.

FAQ: Outdoor Vacuum Circuit Breaker Factory Testing

What tests are normally performed on an outdoor vacuum circuit breaker before shipment?

The exact routine test program depends on the breaker model, applicable standard and project specification. Factory verification commonly covers equipment identification, mechanical operation, primary-circuit condition, insulation performance, control circuits and relevant secondary functions. Intelligent functions are tested according to the actual configuration.

Is a type test performed on every circuit breaker?

No. Type tests are generally used to verify a product design or representative configuration and are different from the routine or factory tests performed on manufactured equipment. The applicable type-test documentation should be matched to the offered product configuration.

Why is main-circuit resistance measured?

The measurement helps verify the condition of the primary conductive path, including contacts and conductive connections. Abnormally high resistance may indicate a connection or contact issue requiring further investigation.

Why is a power-frequency withstand test important?

It verifies that the insulation system can withstand the specified AC test voltage without breakdown or unacceptable flashover under the prescribed test condition. The required test level depends on the breaker's rated insulation level and applicable specification.

Are automatic reclosing and communication tested on every VCB?

No. These functions apply only when they are included in the product configuration. Intelligent VCB testing should correspond to the protection, controller and communication functions ordered for the project.

Can customers witness factory tests?

Depending on the contract and project arrangement, customers may participate through an on-site FAT or remote witness inspection. The scope and acceptance criteria should ideally be agreed before testing.

Should factory test reports be kept after commissioning?

Yes. They can provide useful baseline information for later commissioning, troubleshooting and maintenance and can support equipment traceability throughout its service life.

Conclusion

Testing an outdoor vacuum circuit breaker before delivery is not about producing the longest possible list of test items.

The real objective is to verify that the manufactured equipment matches the agreed configuration and that its mechanical, electrical and control functions perform as required.

A complete quality process therefore connects physical inspection, mechanical operation, primary-circuit verification, insulation testing, secondary control checks and—where applicable—intelligent protection and communication functions.

Buyers should also clearly distinguish between type-test evidence and factory/routine testing of the delivered equipment. Both are valuable, but they serve different purposes.

For utilities, EPC contractors and international project buyers, the most useful factory inspection is one that answers three questions clearly:

Is this the equipment we ordered?
Does it operate correctly?
Is there documentation showing what was verified before shipment?

If you are sourcing outdoor vacuum circuit breakers for a substation, overhead feeder, industrial system or distribution automation project, send DGG Power your system voltage, rated current, short-circuit requirements, controller configuration, technical specification and FAT requirements. Our team can coordinate the product configuration and factory verification process according to your project needs.
